Nissan Skyline GT-R 2.6 24V RB26DETT FORGED PISTONS AND RODS @ 0.50MM OVERSIZE

Nissan Skyline GT-R 2.6 24V RB26DETT FORGED PISTONS AND RODS @ 0.50MM OVERSIZE

Regular price
£1,450.00
Sale price
£1,450.00
Regular price
£2,378.00
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

NISSAN SKYLINE GT-R 2.6 TURBO 24V

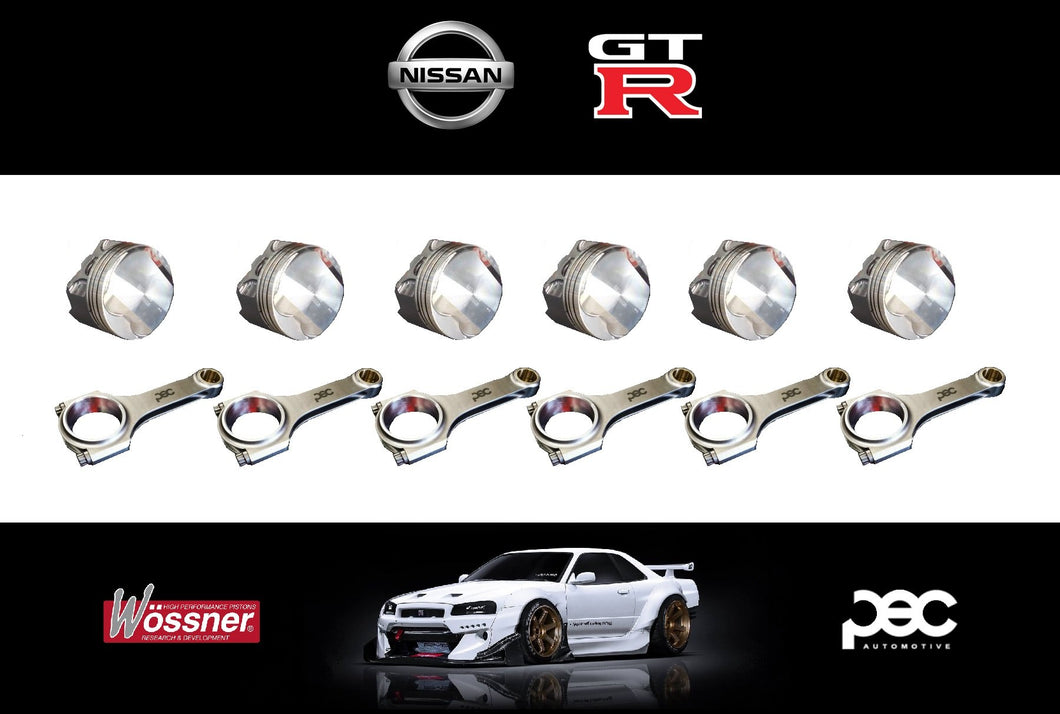

 WOSSNER FORGED PISTONS & P.E.C PERFORMANCE RODS @ 0.50mm Oversize

**If you need a different size piston this will require ordering in which can take up to a week, Please call or Email for more info**



Fits: R32 / R33 / R34 SKYLINE GT-R 2.6 Turbo

Engine Size: 2528.09cc

Engine Code: RB26DETT

O.E Bore Size: 86.00mm (This is not the pistons bore size)

Piston Bore Size: 86.50mm - 2528.09cc

Stroke: 73.7mm

Dome / Bowl Volume: +16.56cc

Wossner Comp. Ratio: 8:5:1

O.E Comp.Ratio: 8:5:1

Comp Height: 30mm

Valves Per Cylinder: 4

Cylinders: 6

Rod Configuration: H-Beam - G0056

Con Rod Length: 121.50mm

Small End Diameter: 21.00mm

Small End Width: 21.75mm

Big End Bearing Diameter: 21.00mm

Big End Width: 21.75mm

Bolts Specification: APR 2000 3/8" Thread



What's In The Box?



6x Forged Wossner Performance Pistons With Rings & Pins @ 0.50mm Oversize



6x P.E.C Performance Connecting Rods



12x ARP 2000 Series Connecting Rod Bolts



---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

W?ssner are regarded by Europeês leading motor sport engine builders as being the piston of choice when building an engine not only to perform, but to withstand the stresses and duressês of competition life. W?ssner pistons feature a unique PTFE coating on the skirts and a grade of 4032 Alloy (T6) which allows the engine builder to run a closer piston to bore tolerance then he might do on another make of piston.

This helps remove the slapping noise during cold start, common place among engines running forged pistons due to larger then OE bore clearances. The crowns of the pistons are also polished to better resist detonation on a high performance engine. Polishing allows a more even spread of heat inside the chamber which will help prevent –hot spots” on piston crowns. Price includes all piston rings and gudgeon pins.

PEC's own in house design facilities are able to create many different components but for nearly 10 years now, it's our connecting rods that have helped set us apart from the competition in terms of availability, ease of fitment and size of range.

Manufactured from forgings originally produced in Sweden, PEC connecting rods have offered engine builders and tuners a cost efficient and yet high performing solution to a wide variety engine building problems.

H-Beam section connecting rods are forged from AISI 4340 (En24) steel. Heat treated to HRC 35-38 and then shot peened for a higher fatigue strength. Small ends are bushed for a fully floating pin and big ends are fitted with high quality ARP fasteners with different specification bolts available depending on the level of performance required.

PEC Connecting rods have been designed, manufactured and tested to the highest levels of scrutiny before being released to the trade and the public alike and their success record speaks for itself.
