Make: FORD
Model: B-MAX / C-MAX II / FIESTA / FOCUS / GRAND C-MAX / MONDEO
Engine Size: 1.6 TDCi
Engine Code: T3JB / T1DA / T3DA / T1DB / TZJA / TZJB / T3DB / T1BB / T1BC

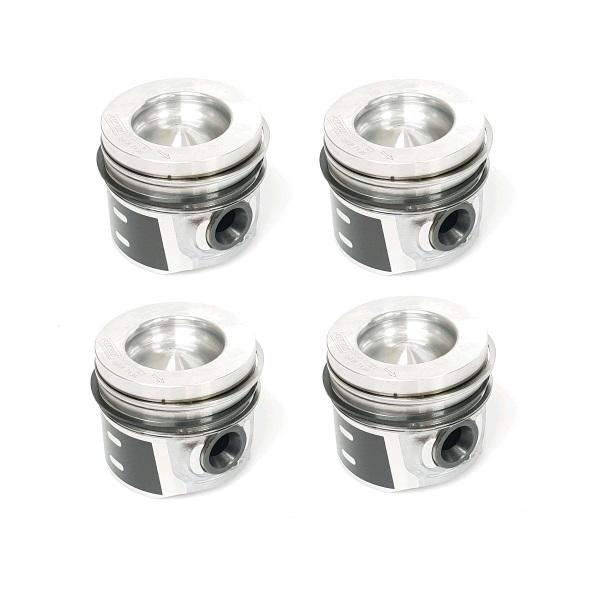

Description: PISTON SET
IMPORTANT INFORMATION - 8V TDCi ENGINES
PISTON DIMENSIONS:
- BOLT LENGTH: 61mm
- BOLT: 26mm
- BORE: 75mm
- PISTON LENGTH: 65.20mm
- COMPRESSION HEIGHT: 41.75mm
- EQUIPMENT VARIANT: +OIL GALLERY
- RECESS DIAMETER (BOWL): 45mm
