Make: CITROEN
Model: BERLINGO / C3 / C4 / C5 / DISPATCH / DS3 / DS4 / DS5
Engine Size: 1.6 HDI 8V
Engine Code: 9HR (DV6C) / 9HR (DV6C) / 9HL (DV6C) / 9HW (DV6TED4) / DV6TED / DV6B / 9HP (DV6TED) /

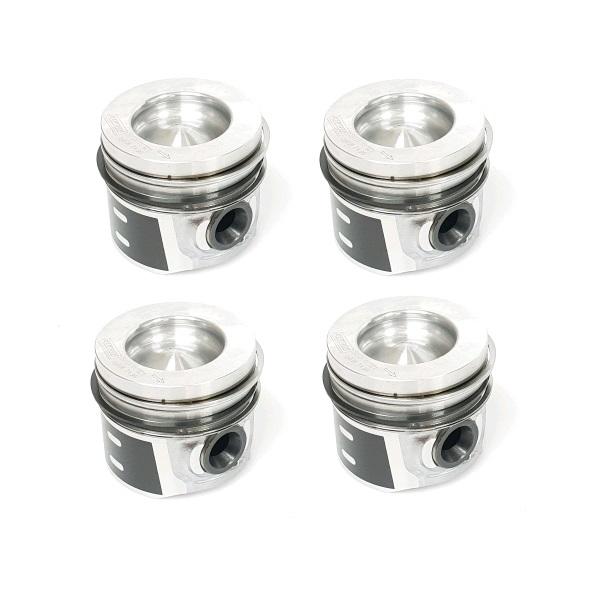

Description: PISTON SET (4 CYLINDERS)
IMPORTANT INFORMATION - 8V HDI ENGINES (Call Fore More Info)
PISTON DIMENSIONS:
- BOLT LENGTH: 61mm
- BOLT: 26mm
- BORE: 75mm
- PISTON LENGTH: 65.20mm
- COMPRESSION HEIGHT: 41.75mm
- EQUIPMENT VARIANT: +OIL GALLERY
- RECESS DIAMETER (BOWL): 45mm
